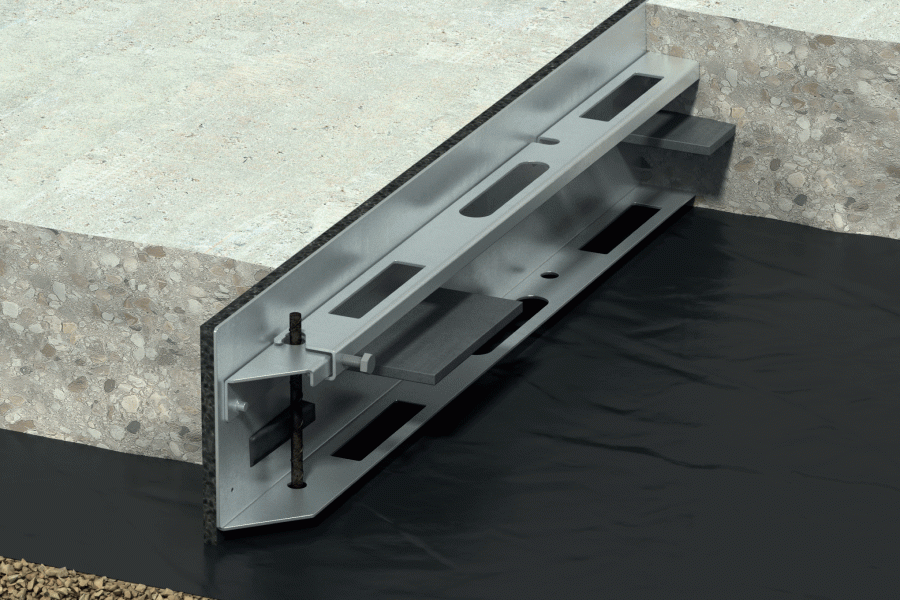

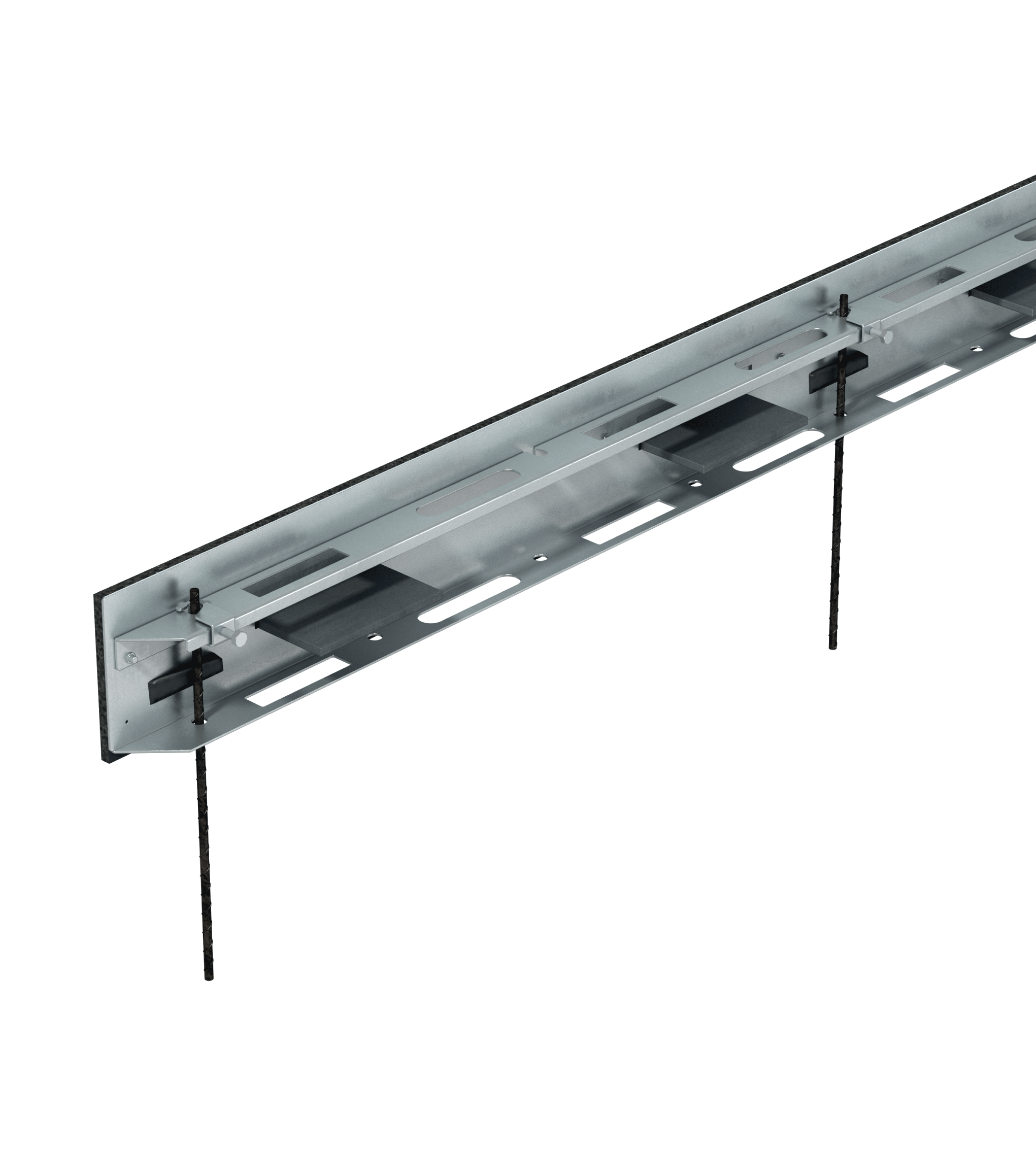

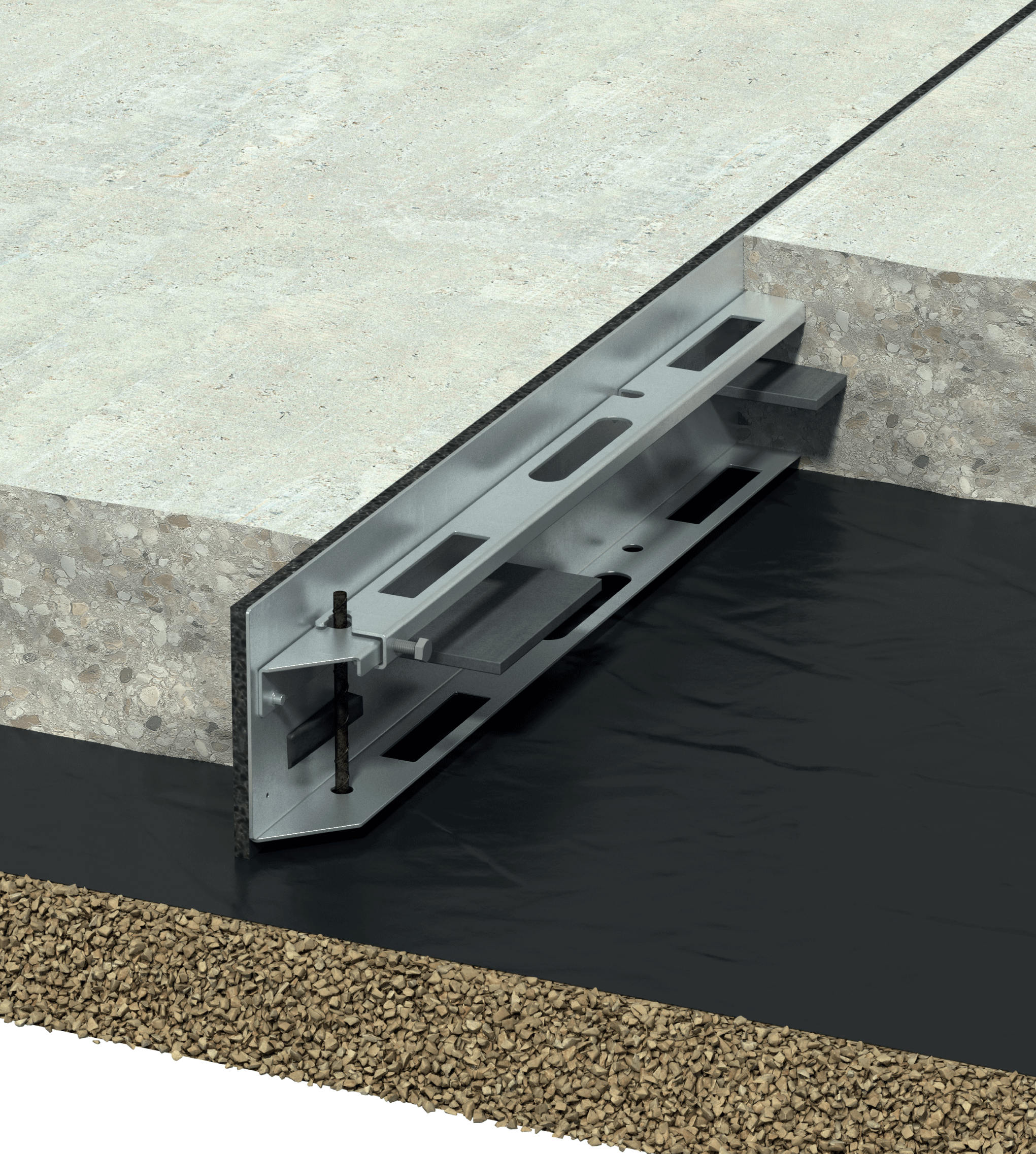

Isedio EXPANSION JOINT comprises a divider plate with a prefixed 10mm cross-linked expansion foam, load transfer plate dowels and sleeves and pegs & wedges for an easy installation. The divider plate height fits the slab depth and, to ensure the plate dowel is always located at the mid-height of the slab, is manufactured to order.
Isedio EXPANSION JOINT also features a unique, Asymmetrical Plate Dowel design for superior load transfer, while the sleeves are designed to facilitate a class leading +/-20mm of longitudinal movement along the joint and 30mm maximum joint opening. The system surpasses the requirements of TR34 4th Edition.
Isedio EXPANSION JOINT provides a speedy installation by enabling continuous pour with plate dowels already welded in the designated spacing and height.
